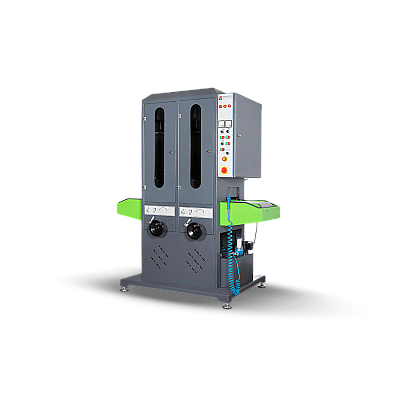

Metal Sanding Machine

Product Code : DYZ 300 R.R.

Suitable for grinding, deburring, finishing  for flat surfaces off steel, stainless steel, brass and aluminum.
Rubber –coated Roller grinder type DYZ300 provide optimum finishing for square profiles and flat surfaces through a wet grinding process.

  • Working widht up to 300 mm
  • Wet or dry grinding
  • Adjustable grinding pressures allowing to get high stock removel from work peace
  • Abrasive belt variable speed
  • Conveyor belt variable speed
  • Abrasive belt size: 2000*310 mm

Options:

  • Air blower for workpieces drying at the machine outlet
  • Table roller
Working Wide mm 0 - 300
Working thickness mm 0,8 - 120

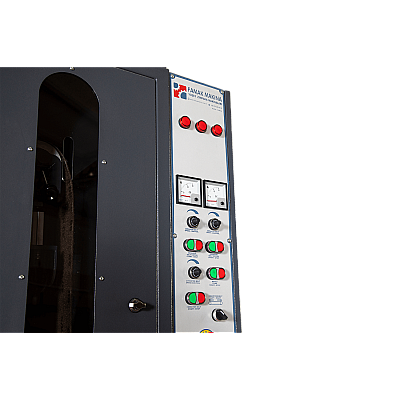

Control panel Analog Panel

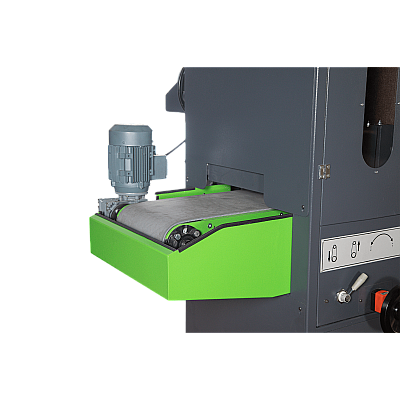

Conveyor system features
  • Feed speed adjustable 0,5 – 8 m/min,
  • ability to move forward or backward
  • abrasion resistant conveyor belt
Weight kg 1250
Dimensions W*L*H 1200 * 1840 * 2150
Electrical cabinet Siemens, Schineder
Motor Invertors Mitsubishi

* CE; European standard safety norms in compliance with 2006/42/EC - 2014/30/EC
* Standard Voltage 400V - 50 Hz – 3P

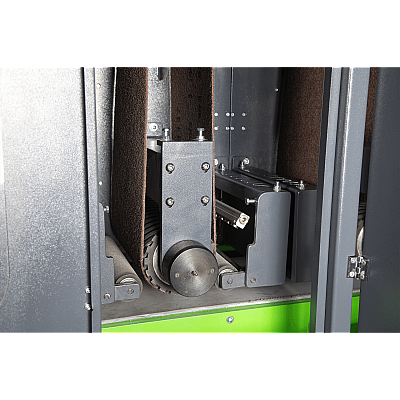

Unit 1
Unit type Roller Unit
Ünite features Ø150 mm, Rubber –coated, 50-55 shore Roller
Abrasive belt dimension mm 2000 * 300
Abrasive belt cutting speed m/s 3 to 15
INVERTER controlled variable Speed
Motor power kW 5,5


Unit 2
Unit type Roller Unit
Ünite features Ø150 mm, Rubber –coated, 50-55 shore Roller
Abrasive belt dimension mm 2000 * 300
Abrasive belt cutting speed m/s 3 to 15
INVERTER controlled variable Speed
Motor power kW 5,5
