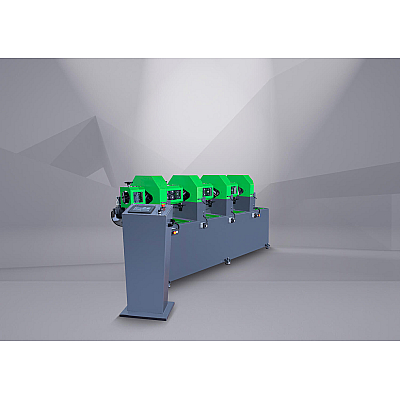

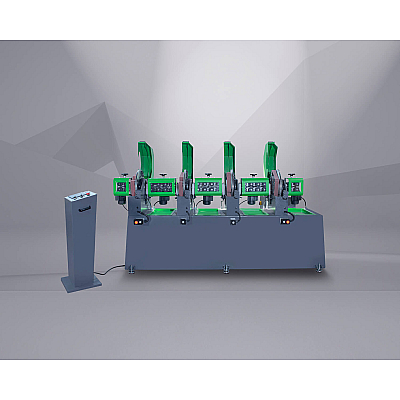

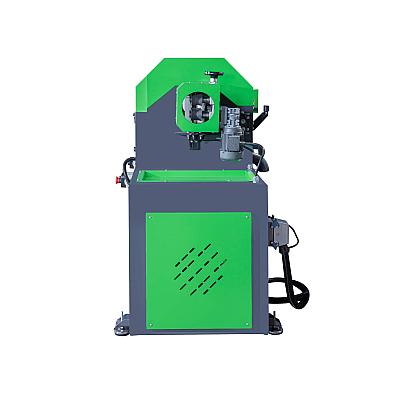

Pipe Polishing and Sanding Machine 4 Unit

Product Code : BP 110-4

BP110 allows achieving a high productivity enabling grinding, polishing, and satin finish straight or bent tubes with a round, oval, elliptical sections made of stainless steel, steel, aluminum, brass, and other metals.
With the orbital sanding system, it makes 360° sanding without rotating the part.

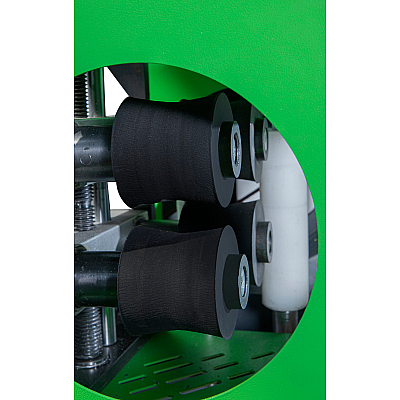

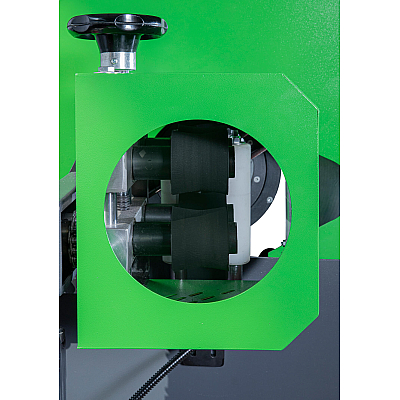

  • Speed adjustable automatic feeding system (front and rear),

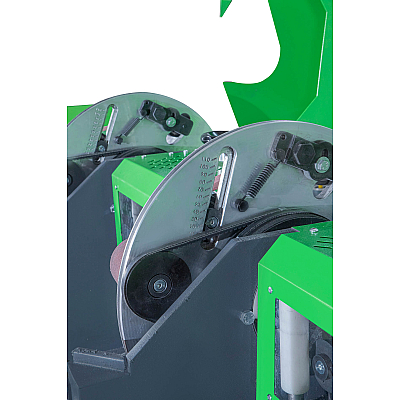

  • Speed adjustable sanding 5 – 30 m/s,
  • Manual or automatic feed,
  • Manual height apparatus for bent pipes,

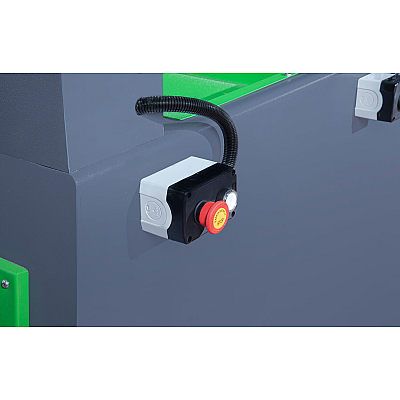

  • Sanders that open and close with pedal control,
  • CE standards.

Application areas of metal

  • Stainless steel,
  • Aluminum,
  • Brass,
  • Composite,
Working Capacity mm Ø10 - Ø114
Abrasive Motor Power kW (4x) 3
Abrasive Cutting Speed m/s Speed adjustable 5 – 30 m/s
Main Wheel Motor Power kW (4x) 1,5
Abrasive Bant Dimensions mm (8x) 940 x 50
Feeding Systems 5 pcs ( Front and Back)
Feed Speed m/dk 1 - 5

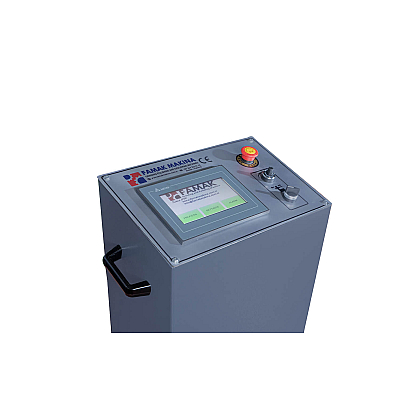

Machine Controll Touch Screen Panel
Electrical Cabinet Siemens, Schineder
Motor Inverter Mitsubishi
Weight kg 750
Dimensions W*L*H 750 x 3000 x 1300
Dust Extractor Dimensions mm (4x) Ø76
